Hale Pet Door for Doors

The Hale Pet Door Mount is a high quality and durable pet door made to last many years with frequent use. The Hale Pet Door’s frame is constructed of strong aluminum to last the four seasons. Don’t waste money on a cheap pet door that will fall apart after a year!

Hale Pet Door Features

This Hale Pet Door is for door installations. If you are looking for a wall mount pet door, please check out the Hale Pet Door Wall Mount.

The Hale Pet Door ‘People’ Door Mount is a self-framing and self-supporting pet door that has a sleek and non-bulky design. Color options make it easy for you to choose a matching color for your door! This pet door fits most doors anywhere from 1 3/8” to 2” thick, and works well with solid wood, hollow-core, metal, raised panel, and French doors.

All Hale Pet Door ‘People’ Door Mounts also include a free raincap which is an awning like attachment that is placed on the top of the Hale pet door frame. The Hale raincap keeps water from entering the pet door from rain!

For the Optional Exterior Hale Pet Door Security Cover:Please note that choosing this option makes the order a ‘custom’ order from the manufacturer, and thus changes the return policy on the door. The custom order return policy entitles you up to 50% credit towards a new purchase of a new door in the event that you want to return the custom door for any reason.

Why Hale Pet Doors are Top Rated

• Strong & Durable –All Hale Pet doors are built with longevity in mind. Most pet doors in the market today that can be found in big box stores are not sturdy and generally have some sort of breakage after a year of use. A pet door is essentially a home improvement item. You wouldn’t cheap out on a new toilet would you?? The Hale pet door frames are made of heavy-duty extruded aluminum with steel reinforced corners.
• Energy Efficient to save you money –The Hale Pet door flaps are weather resistant and utilize alnico magnets and nylon pile weather stripping around the frame of the pet door. Choosing the double flap option for the Hale Pet Door adds an extra layer of insulation and energy efficiency even in the most extreme environments.
• Twelve sizing options for versatility –Hale Pet Door is the only pet door manufacturer that allows customers to choose from 12 different sizes for the frame, making it easy for customers to find a size that fits anything from a small cat to a large Great Dane.
• Extra secure –All Hale Pet Doors include a security cover with their purchase. The security covers are made of King Starboard Polymer which makes this cover fire, shock, and impact resistant. The Hale locking cover is reinforced with a strong steel pin lock that is attached to the frame, which prevents the locking cover from being removed or opened from the outside.

• Keeps Your House and Door Dry and Clean - The included rain cap, rain resistant cover and flap, and caulking all work in harmony to prevent any your home from water intrusion. They also help protect from wind, dust, debris, and the elements.
• Keeps outside elements out – The Hale Pet door keeps the inside of your house clean with its design. The flap on the pet door itself utilizes alnico magnets for a strong sealing value, as well as nylon weather pile to keep other elements out. The included raincap that mounts on top of the frame keeps rain from falling in.
• 5 year no fault warranty– The Hale Pet door is backed by a comprehensive 5 year no fault warranty.
• Made in the USA– All Hale Pet Doors are designed and manufactured in the USA for quality purposes!

Product Options

• Flap Type –Choose from a single or double flap option. Double flap adds an extra layer of insulation and added energy efficient value.
• Flap Size – Hale provides 12 different sizes, from small to giant for pets of all sizes.

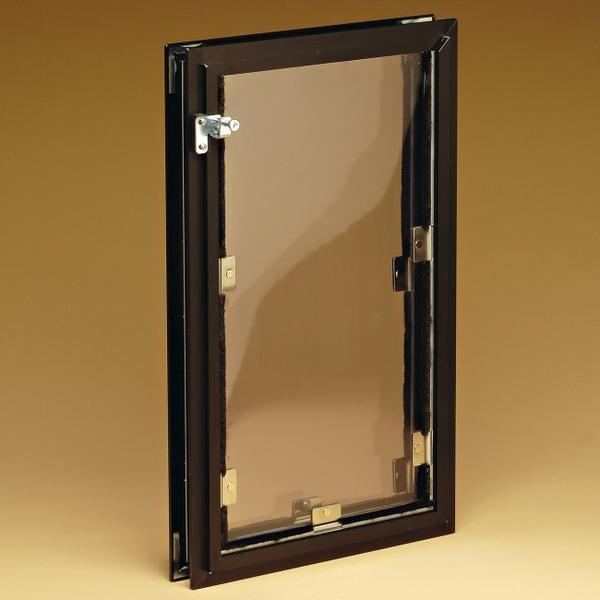

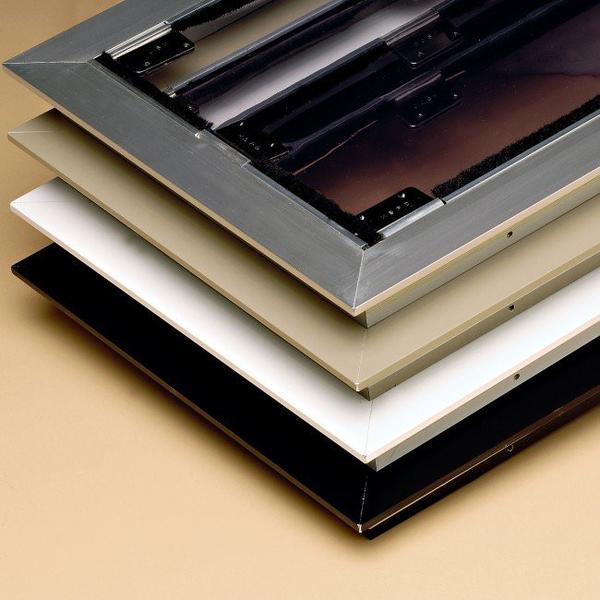

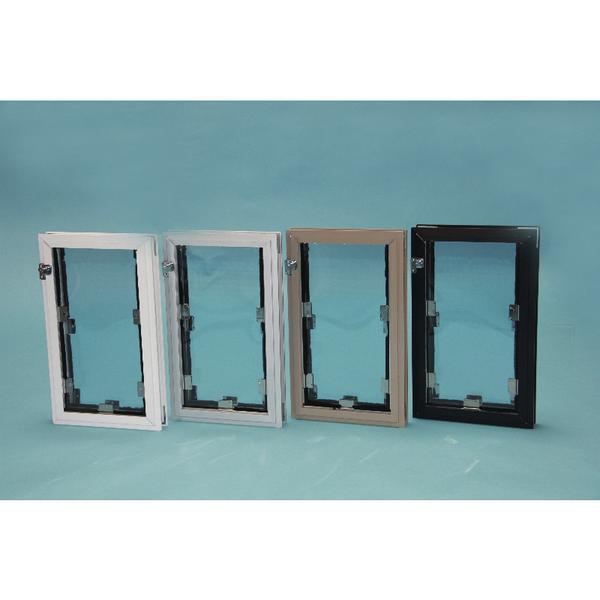

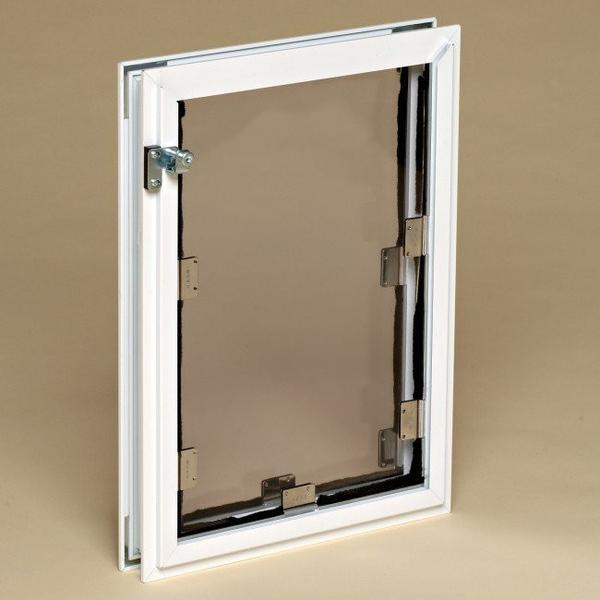

• Frame Color – Choose from four different colors: Brush Aluminum, Beige, Dark Bronze, or White. Please note that the security cover color will be a complimentary color of the frame color you choose.
• Load direction of the security cover – Standard loading security covers go from the top of the frame to the bottom. Side load is also available for both left and right directions if there is an obstruction above the pet door.
• Secondary Exterior Cover (Optional) –Hale Pet Doors allow for an optional secondary exterior cover for your pet door.
  • PLEASE NOTE - If you decide to choose this option with your order, the manufacturer deems the order to be “custom” and because of this, the return policy changes. The return policy for “custom” orders allows you 50% credit towards the purchase of a new Hale Pet Door in the event that you return the original door you purchased.
  • Secondary Exterior Cover Load Direction –You must choose a secondary exterior cover load direction if you choose to have a secondary exterior cover. The direction is determined by looking at the door from the exterior side. If you want both the interior and exterior to load from the same side, the exterior option should be the opposite from the interior. For example, if you choose a left loading cover from the interior, when looking from the exterior, that same direction from the interior is right loading from the exterior.

Hale Pet Door Sizing Chart

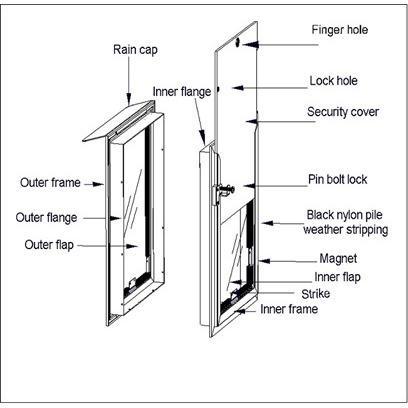

Product Specifications

• Flap Material –Made of clear, flexible 3/16” PVC vinyl. Comes in single or double flap option
• Pet Door Frame –Made of heavy-duty extruded aluminum with steel reinforced corners.
  • Inner Frame -Made of two separate metal extrusions. Both metal pieces are 0.063” thick. Three of these sides entrap the security cover.
  • Outer Frame –Made of extruded aluminum (6063-T5) with a wall thickness of 0.063”. Sleeves into the inside frame.
  • Self-Framing –The Hale Pet Door self-frames, so no need to frame out any holes in the door. Fits doors 1 3/8” to 2” in thickness.
  • Flange -Outer flange is 0.70” thinner than the inner flange to allow the frame to sleeve together.
• Energy Efficiency and Sealing Value
  • Double flap –The double flap option adds an extra layer of insulation for your home and extra protection against outside elements.
  • Nylon Pile Weather Stripping –Hale Pet door flaps are surrounded by a ½” nylon pile weather stripping for added insulation. The nylon is woven into a backing that is 9/32” wide and 1/32” thick.
  • Alnico 5 Magnets for sealing –Alnico 5 magnets are made from aluminum, nickel, and cobalt alloy. They are known for their strong magnetism which gives the flap strength and durability in its sealing. The number of magnets on the flap is determined by the flap size.
  • Strikes –Manufactured out of ferrous stainless steel. The strikes are 1 ½” long, ¾” tall, and 1/32” thick. It is U-Shaped with interior prongs, and when squeezed onto the PVC vinyl flap, the barbed prongs hold firmly.
• Security Locking Cover
  • Security Cover –The security cover is made of ¼” thick King Starboard or 3/16” Lexan polycarbonate sheet, both of which are extreme shock and impact resistant. Security cover has a 3/8” diameter locking hole and a ¾” diameter handle hole. Can be installed inside and outside. Drill bits included.
  • Pin Lock –The pin lock is mounted on the frame of the pet door. The pin lock secures the security cover in place with a ¼” diameter positive action steel pin encased with 5/32” thick fabricated plated steel.
• Raincap
  • Awning –An optional raincap or awning attachment is available. The raincap hooks to the outside frame for use in diverting water and preventing in from entering the pet door.
• Door Thickness Accommodation
  • Sizing -Most standard doors measure between 1 3/8" to 2" thick, which this model will fit. Anything thicker than 2" will require the Hale Pet Door Wall Mount. For doors thinner than 1 3/8" but thicker than 5/8", a buildout is additionally required to space out the pet door frames correctly.

Hale Pet Door 5 Year No Fault Warranty

Please see Hale Pet Door’s 5 Year Warranty Terms here

Shipping

Hale Pet Door Shipping Times

• Hale Pet Doors ship via FedEx Ground from Canon City, Colorado. Please reference the map below to calculate shipping times.
• Hale Door Mounts and Wall Mounts generally take 1-5 business days to manufacturer before shipping out.
• Custom options on door and wall models can take 7-10 business days to manufacture.
• All glass models, such as panels or windows, ship in 3-4 weeks due to manufacturing process.

Sizing & Measurement

Sizing Guide

Measuring Your Pet

1. Measure the Height

   Measuring the height of your pet is simple. The height will be used to determine how high you can install the pet door. Grab a tape measure and measure from the ground to the tallest point of your pet’s back. We suggest adding an inch or two to this measurement just to be safe.




2. Measure the width of your pet



   The width will be used to determine the width of the flap that you will purchase. All you need to do is open a door wide enough so that your pet can walk through comfortably. Once your pet walks through, measure that width of the opening and add an inch or two for safety.




3. Measuring the Step-Over / Rise



   The step over or “rise” is the measurement from the bottom of your door or wall to the base of the pet door. This is basically the height that your pet must step over in order to get through the door. Please note that this measurement should be factored in with the pet’s height you measured earlier when choosing an appropriate pet door height. With step overs, the lower they are, the easier it is for the pet to get through. For dogs with health issues such as arthritis or are of old age, it is recommended that you have a small step over.




To summarize, here is a diagram of the measurements you should take:

Measuring Your Door or Walls

Besides measuring your pet, you also have to measure your door or wall when installing a pet door. There are two measurements you must take into consideration: the rough opening size and the outer frame size. The rough opening size is the actual size of the hole that you will be cutting into your door or wall. Generally the inner frame of the pet door will fit in there. The outer frame measurement is the measurement of the outer framing of the pet door that’s usually a couple inches larger. For tight spaces, this outer frame measurement is important to know.

Measuring for a Sliding Glass Door Pet Door

Measuring your sliding glass door is a must before purchasing a sliding glass door panel pet door. There generally isn’t a standard height for sliding glass doors and they can vary greatly from brand to brand.

Here’s how to measure:

Place the end of the measuring tape you use up inside the track as high as it will go and measure down a convenient distance and then draw a line with a pencil.

Then, put the end of the measuring tape down into the track towards the bottom and start measuring from the line you drew previously.

Simply add those two numbers together and you got your track height.

If you measure all at once, you might not get the most accurate number as the measuring tape curves towards the bottom. The different sizing ranges for panels is precise and if you happen to mis-measure, it will become a hassle.

Other Things to Consider When Choosing the Correct Size Pet Door

If you currently have a puppy or kitten, remember that they will continue to grow. Finding out the size that they will be approximately can help you make the right purchase. People often judge this based on their parents’ size.

Having a door that is mounted low gives more comfort for pets to step over. Young pets should have no problem going through a door, but as they age, having a higher step over can become an issue for pets with health issues.

Making sure the pet door is tall enough for your pet is also crucial with age as having a pet door that is too short will require hunching from your pet, which over time can be hard on your pet’s hips. Flaps will generally last longer too if the pet isn’t rubbing against the top part of the door as well.

If you have multiple pets, make sure that the door you get can accommodate all of them. It must be low enough for the shortest pet to step over but also tall enough for the tallest one to fit through comfortably.

Got any questions on measuring? We're here to help. Call us at (888) 557-PETS or send us an email at contact@petschoicesupply.com.

Installation Instructions

Hale Pet Door Door Mount Installation Instructions

Click here to view the Hale Pet Door Door Mount Installation Instructions

Warranty

Hale Pet Door 5 Year Warranty

Click to see Hale Pet Door’s 5 Year Warranty Terms here
